的主要用途是什么与简单：Purpose and introduction

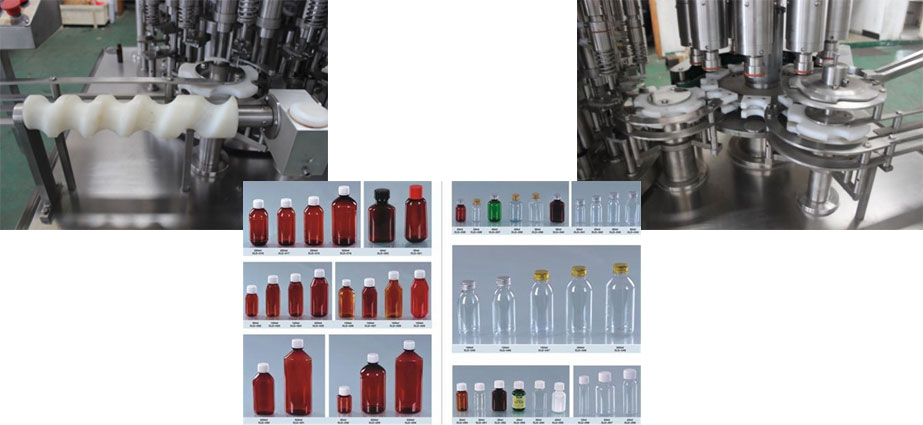

该机器设备适用性于对30-500ML系磨砂泡沫可乐瓶子、泡沫可乐瓶的分装分娩线密封。采用了联系联系式连杆来进行分装分娩线，电磁波振荡器送盖，可轧盖(塑料材质式)或旋盖(泡沫塑料材质盖)密封，可和先后的分娩的生产工艺机器设备连接起来分为分娩线，除此之外可在选购百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

的特点：characteristic

装量准确无误，杜尽漏滴。缺瓶不装罐。 定频调速器。 分手后屏幕上显示计算副作用。 设备均按GMP的要求设计的。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

的技术数据/technical parameters：

型号 model	NQGX30-500
用于尺寸Cutting dimension	30-500ml
生产业务能力Production capacity	80-200瓶/分（罐/分鐘）80-200 bottles/min (cans/min)
灌装设备控制精度 Filling accuracy	≤±1%
外接电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
自动化净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
