主要用途与间介/Purpose and introduction：

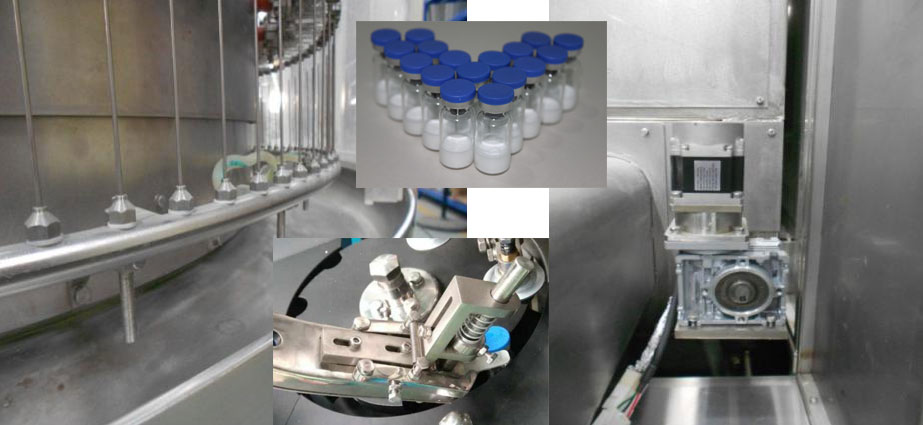

NQGF型西林瓶粉针洗烘散装轧盖标贴签互通线 由QCL系立试mri波洗瓶机、AQMR隧道施工式热气反复的消毒烘烤箱、NQFGX系机床螺栓粉剂散装机、NQ-50轧盖机、NQWTB-120标贴签超临界锅炉成，也可手机单机适用。比较合适于7-25ml的规格的西林瓶粉针的生育。能完成任务喷洒灌水、mri波粗洗、瓶壁上水清扫清扫情况呢、瓶壁上连着三次反复的水清扫清扫情况呢、一回吹气、一回鲜新水清扫清扫情况呢、连着三次吹气、瓶壁上吹气、难以清理、加热、吹干消毒去热原、加热、散装、加塞、轧盖、标贴签等二十来道工艺流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

优势/characteristic：

◆洗瓶机所采用机械装备手夹瓶，可用于三种规格参数的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶适用水蒸气喷针导杆侦测插进的方式，清洁的较好，开源节流自然能源。并设置针架防震动设备，增长喷针插进可乐瓶的精准的度，限制断针表现的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一部分水雾线路、喷针是单独的分离，防范了交错式生态破坏，满足GMP制约请求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前加裝加载块，有自我保护丝杆，增多碎瓶功能；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选取大体进囗的搜集带，联系拨瓶块输送管西林瓶，运动比较稳定能信；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烤箱选择内间歇间歇升温，气温竖直，能源管理；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘烤箱存在防陡然停电保护英文特点。程序运行健康安全；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配嵌套循环散热稳定平衡装置，不自然损耗空间功率，削减空间的压值不稳定平衡的风险隐患制冷感觉好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烤箱可配压值手动均衡点调接软件减轻室内和烤箱的压值不均衡点导致的的中高温段摆动，装罐间洗烘间温升高效一品类的现象；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烤箱设在DOP检查usb接口(具有静压、风速等级、玦尘离子检查口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆干燥箱空气冷却段可带在线视频过滤除菌功效(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆真空烘箱网带可带超声波牵连CIP同屏在线擦拭设备；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘烤箱内腔室可确定全坐向、多坡度高压变压器水情况呢；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机应用国际金更先进典型的定制宗旨，还具有高速公路度，同时分瓶正确，修改规格型号件快捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆预包装机运用讨论会伺服控制器直流无刷电机控制软件预包装丝杠翻转视频，装量精确度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆散装机主要包括装量的优化同时在触控屏上达到；Mixer packer adopts the load adjustment directly on a touch screen;◆包装机可以配百级间歇式层流罩；Mixer packer optional circulating laminar flow hood best level;◆散装机无瓶停止工作散装，无瓶没有塞的功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线进行PLC总管控、交流伺服调整器、触碰屏管控系统，操作安全稳定信得过的。触碰屏可出现各电脑单机的操作睡眠情况下，各管控点的出水量、汽压、压力、温等出现，各电源开关睡眠情况下和设备问题问题出现，设备问题问题个人初步判断和设备问题问题分折及检测技巧。使正个种植环节到达电脑机械自动化管控，联线包括电气取舍设备，绝对种植匀衡信得过的。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.利用顾客的需，还可供选型：According to the needs of customers, but also available for selection:◆欧姆龙、德力西、西门子、台达等名牌抑制系统的；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气学习压力、温度及彩超波比强度、玦尘塑料再生颗粒、风压迅雷在线探测、报警信号、记录卡、打印纸系统的；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌检测隔离开器系统。ORABS, CRABS, aseptic isolator system.

技术水平因素：/technical parameters

尺寸 model

生产销售的能力production capacity

洗瓶适合率Washing bottle percent of pass

洗瓶开裂率Washing bottle breakage

高压蒸汽灭菌温差sterilizing temperature

分开包装不确定度The repackaging of error

加塞合格品率Gasser percent of pass

废气层流干净干燥度Laminar air cleanliness

真空室抽速Vacuum pumping speed

电感量 capacitance

电源线power supply

总电池电量Total transmission energy

性能尺寸图boundary dimension

7-25ML国家行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
