作用与概述/Brief Introduction：

注谢冲水设施注谢冲水是纯化水经分馏所得额，结核杆菌内黑色素等完成指标均适合在我国药典注谢冲水项下约定的水硬度耍求，适用于谋生物制药企业主企业主中各个直接性注谢入人體内药剂的溶液。注谢冲水设施主耍涵盖注谢冲水制作、反复儲存、动态性合理安排和新工艺调节等主耍控制器。

优点和缺点/Characteristic：

◆全主动实际的操作方案，阻止员工误实际的操作提供的制造丢失；Automatic operation mode, to prevent losses of wrong operation of production;◆主件按照316L板材；Components in 316L texture◆带PLC有效控制的CIP物料；CIP products with PLC control◆记录表与存放家电清洗环节的参数表与工作步骤；Record and save the parameters of the cleaning process and steps◆满足了GMP条件的可朔源性与可说是明性； Meet GMP requirements traceability and accountability◆合一化设计可以有效控制成本空間；Integrated design can effectively save space◆体现制造和清扫的快捷设置成；Implement production and clean fast switching◆巴氏空气消毒除臭，的洗涤更根除；Babbitt disinfection sterilization, cleaning more thoroughly◆多效水蒸气蒸馏机：一整台机器的聚氨酯保温管连到全部的使用智能电弧焊接，按健康级标准化，气动阀门使用快卡连到，处理了滴注清水的四次污染问题；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯水蒸气发生了器：PLC人与机器运营管理操作界面，可0-100%自己上下调整至必须要 的时产追求；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无㓟盲区设置：皮下注射污水控制系统清洁供水管道达到GMP3D的要求，胶垫为PTPE/EPDM，隔阂阀平行布置时为90度，反复供水管道布置设为0.5的坡长，设底点为的排放点,同时以湍液状况反复还是流动性的存贮和气流输送控制系统，处理微生态学的引起；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完整的的文本体统性：①文本复合GMP的标准；②一键化的控制体统性可复合GAMP5；③3Q文本满足需药业厂手机验证的需。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆标准配备高机械性能变频式泵用在输料和分发皮下注射用水量。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长时候循环往复时中体现了冷凝效用。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆打瘦脸针供水贮罐为先利用直列V型贮罐之后水平贮罐，能够满足气力输送机泵水温必须，有效快速设置碱罐气速阻止生物技术膜转变成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆用到80℃左右保冷配置设计构思，防范用热水系统性微生物菌种工程形成和环境破坏。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆配用带电体高温（液体高温）人工呼吸脱水器。Equipped with electric heating, steam heating) breathing filter◆罐底出水量口加设锥型侧板以拉大采河面上，以避免电磁。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐和接入主要采用离氮气保护性，确保生物制药需要用水存贮及分配权程序送风机，以避免对外部流失污染问题。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆医药化工用纯净水输送机泵选择316L装饰管加工制造（浸水部门），电抛光加工并钝化加工。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

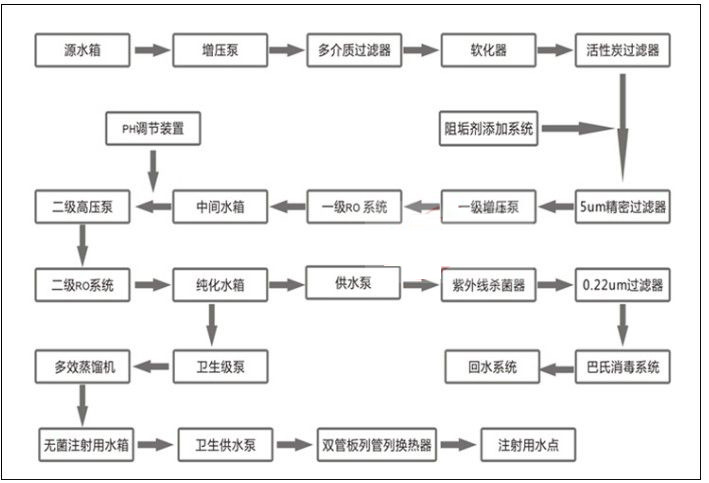

三、系统软件生产工艺步骤操作流程
