适用范围与百科/Brief Introduction：

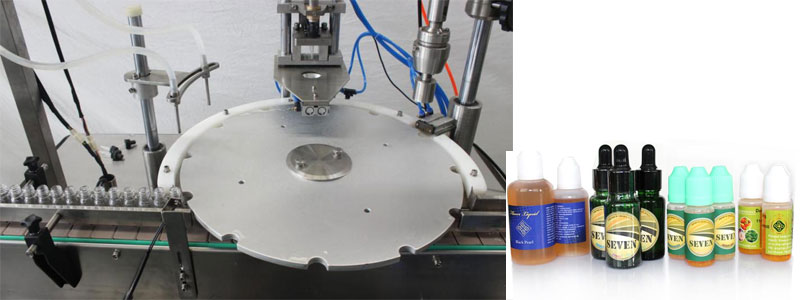

该机适合于2-30ML种种布料材质的长方形扁形PVC或破璃瓶的眼蓝药水包装生产线.该机由高精密度气缸测量范围公司出具测量范围等分盘标记上塞上盖;变快度气缸齿轮传动装置出具旋盖头的举升;恒力矩旋盖;儒动泵量值溯源包装生产线;触摸式屏调控.无瓶不包装生产线,不用内塞,外盖.具标记透彻,齿轮传动装置有序,自我保护小盖,量值溯源准.运营简易等缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点和缺点/Characteristic：

◆微电子设备制定、装量透彻、操控便利。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机设备速比可做好有级变频器调速器。the mainframe running speed is stepless frequency conversion.◆生产销售量主动酶联免疫法掌握。the product quantity can be controlled. ◆多重问题警告功能性(如低气压表。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自然关机系统，对指定轨道交通导致不断无罐装、无内塞情况报告可自然关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺规格/Main Technical Parameters：

符合规格型号Filling Volume	2-30ml
生产销售专业能力Productivity	30-60瓶/分🃏  70-100瓶/分3💮0-60bottles/min    70-100bottles/min
灌装设备精确Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自功上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
马力 Power	2.0 kw
机设备重量Weight	550 kg
造型尺寸规格Dimension	1800*1000*1500mm
